Hyundai Azera: Transmitter Repair procedures
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Transmitter Repair procedures
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Transmitter Repair procedures
| Inspection |
| 1. |
Check that the red light flickers when the door lock or unlock button is pressed on the transmitter. |
| 2. |
Remove the battery (A) and check voltage if the red light doesn't flicker.
|
| 3. |
Insert the battery (A) into the tester (09954-2p100).
|
| 4. |
Push the test button and If "0.00" is displayed on screen, it means that the battery voltage is 2V or less. |
| 5. |
If "L" is displayed on screen, it means that the battery is low power and it needs to replace. |
| 6. |
To prevent the discharge of electricity, turn the tester power off. |
| 7. |
Replace the transmitter battery with a new one, if voltage is
low power then try to lock and unlock the doors with the transmitter by
pressing the lock or unlock button five or six times. |
| 8. |
If the doors lock and unlock, the transmitter is O.K, but if
the doors don't lock and unlock, register the transmitter code, then try
to lock and unlock the doors. |
| 9. |
If the doors lock and unlock, the transmitter is O.K, but if the doors don't lock and unlock, replace the transmitter.
|
| Transmitter Code Registration (Using GDS) |
| 1. |
Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
|
| 2. |

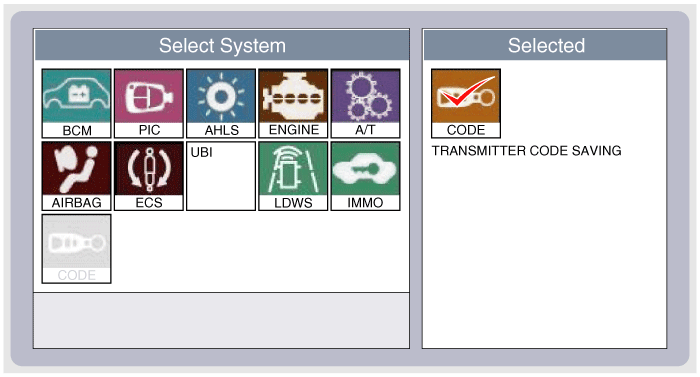

Select the vehicle model and then do "CODE SAVING"
|
| 3. |

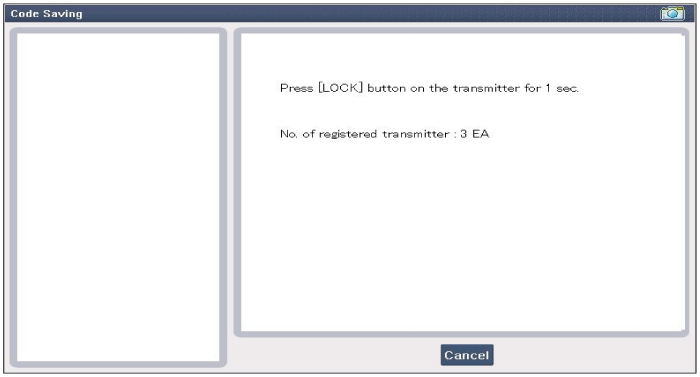

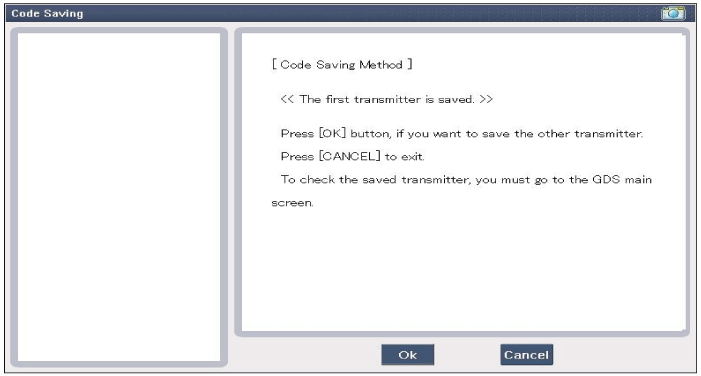

After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.
|
| 4. |

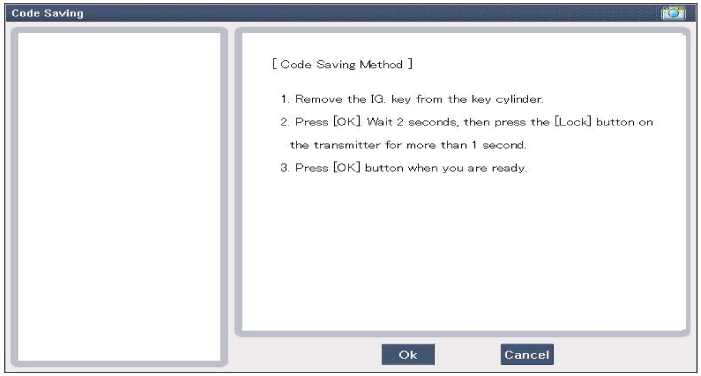

After removing the ignition key from key cylinder, push

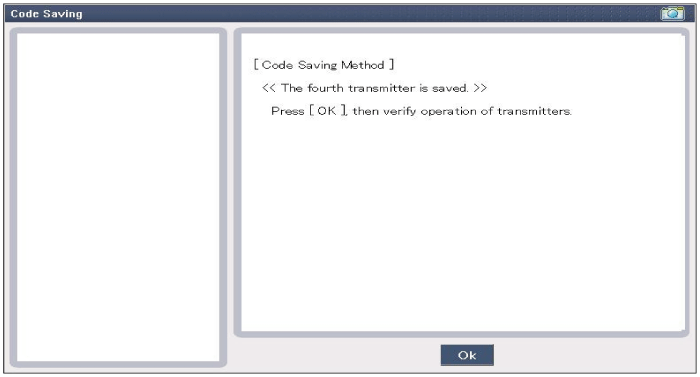

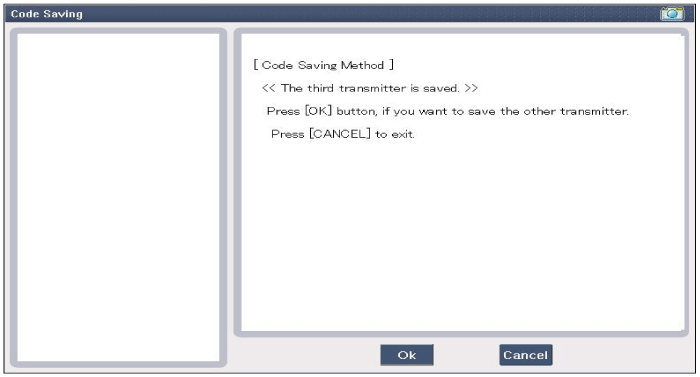

"ENTER" key to proceed to the next mode for code saving. Follow steps 1
to 4 and then code saving is completed.
|
Transmitter Specifications
Specification
ItemDescriptionPower source3VOperating temperature-20°C ~ +60°CRF ModulationFSKRF frequency433.92MHzBattery1EA (CR2032)
