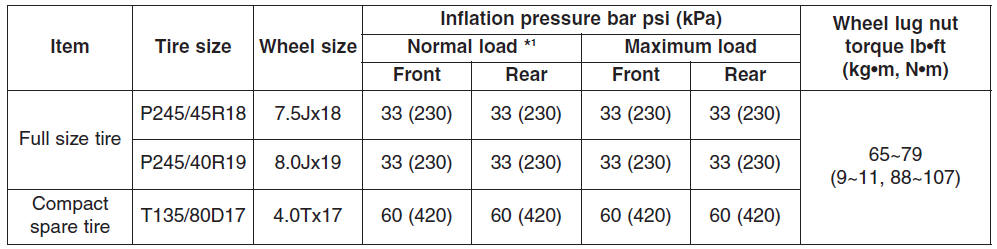

Hyundai Azera: Tires and wheels
✽ NOTICE
It is permissible to add 3psi to the standard tire pressure specification if colder temperatures are expected soon. Tires typically loose 1psi for every 12°F temperature drop. If extreme temperature variations are expected, re-check your tire pressure as necessary to keep them properly inflated.
Bulb wattage
...
See also:
Components and Components Location
Components (1)
1. Roof side molding [RH]2. Roof side molding [LH]3. Movable glass assembly4. Wind deflector assembly5. Panoramaroof panel assembly6. Folding cover [RH]7. Decoration cover [RH]8. D ...
Schematic Diagrams
Circuit Diagram
Input/Output Specification
Connector Pin Lay Out
IMS input/output pin information
NoSignal NameI/OContentsRemarkA1Cushion motor FROCushion motor FR outputA2FR height motor upOF ...
Rear Door Side Weatherstrip Repair procedures
Replacement
1.
Detach the clips, then remove the rear door side weatherstrip (A).
2.
Installation is the reverse of removal.
•
Replace any damaged clips.
...
