The tires supplied on your new vehicle are chosen to provide the best performance for normal driving.

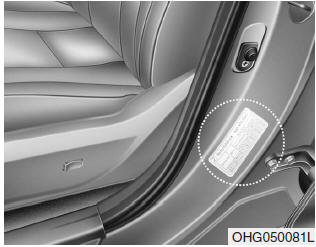

The tire label located on the driver's side center pillar gives the tire pressures recommended for your car.
Vehicle certification label
The vehicle certification label attached on the driver’s (or front passenger’s)
side center pillar gives the vehicle identification number (VIN). ...
Engine number
The engine number is stamped on the engine block as shown in the drawing. ...
