| Component |

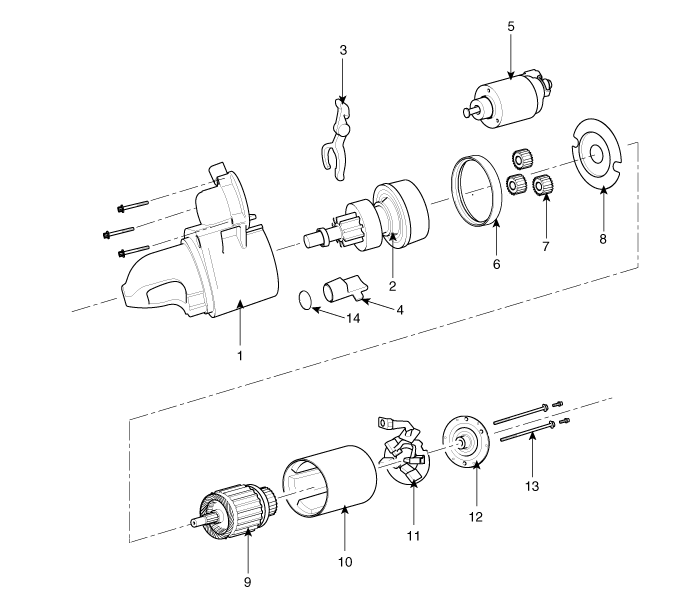

| 1 . Front housing 2. Planet gear shaft assembly 3 . Lever 4 . Lever packing 5 . Starter solenoid assembly 6 . Packing 7 . Planet gear | 8 . Shield 9 . Armature assembly 10 . York assembly 11 . Brush holder assembly 12 . Rear housing 13 . Through bolt 14. Lever plate |
Repair procedures
Starter Circuit Troubleshooting
The battery must be in good condition and fully charged.
1.
Disconnect the injector connectors.
2.
With the shift lever in N or P (A/T) ...
Starter Repair procedures
Removal and Installation
1.
Disconnect the battery negative terminal.
2.
Remove the engine room under cover.
3.
Remove the starter cover (A).
Tightening torque :
Bolts: 8.8 ~ 13.7 N. ...
