Hyundai Azera: Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Front Back view camera System / Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Front Back view camera System / Schematic Diagrams

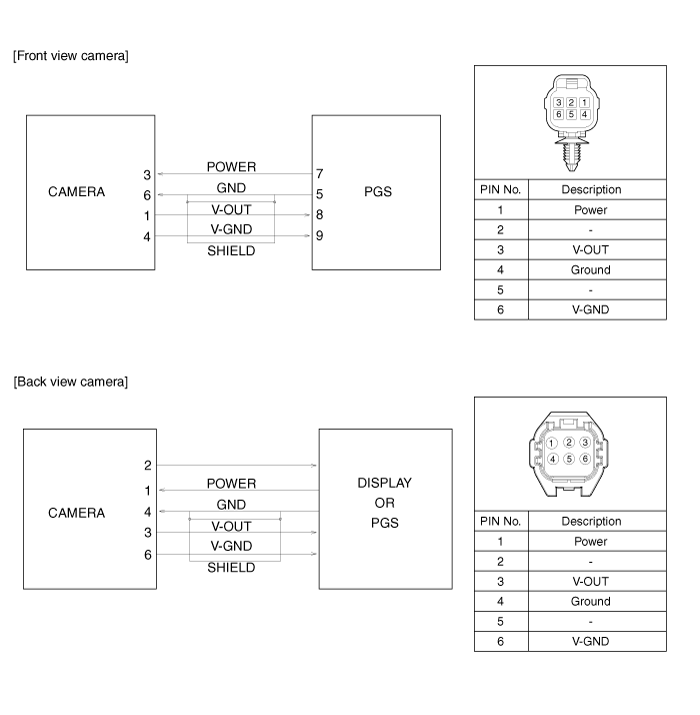

| Circuit Diagram |
