Adjustment |
1. |

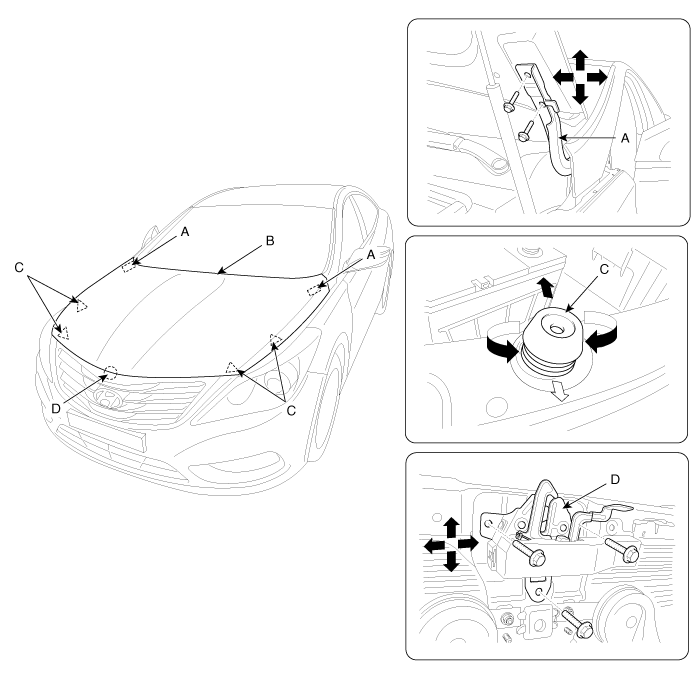

After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up or down, or right or left. |
2. |
Adjust the hood height by turning the hood overslam bumpers (C). |
3. |
After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up or down, or right or left. |
