Hyundai Azera: Relay Box (Passenger Compartment) Components and Components Location - Fuses And Relays - Body Electrical System - Hyundai Azera 2011-2025 Service ManualHyundai Azera: Relay Box (Passenger Compartment) Components and Components Location

Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Passenger Compartment) Components and Components Location

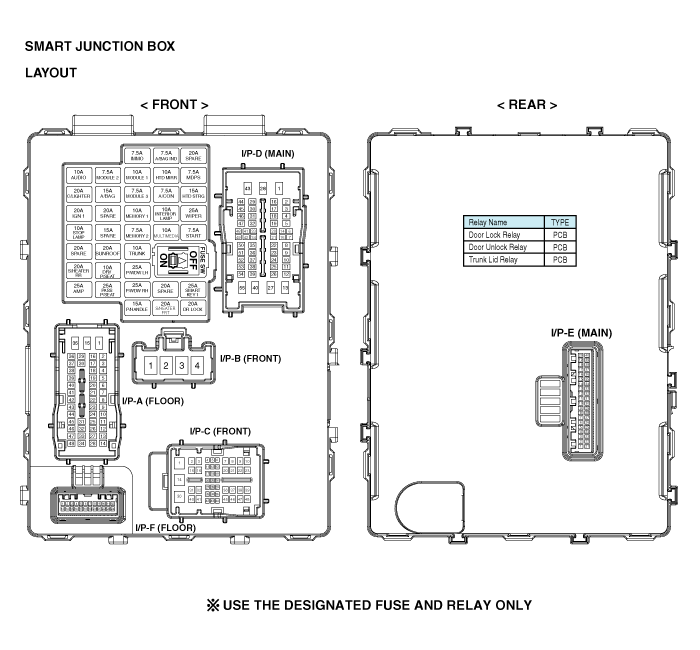

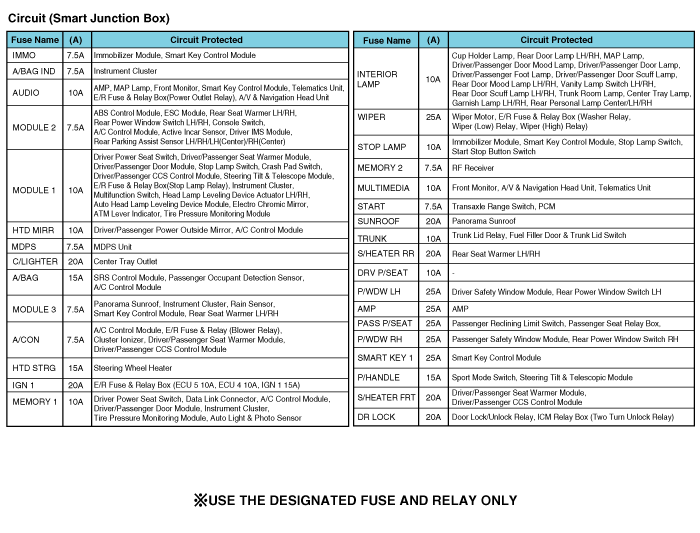

Components
