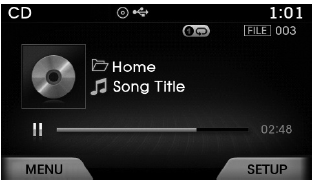

Once an MP3 disc is inserted the mode will automatically start and being playing.
While playing, press the key to
pause and press again to play.
✽ NOTICE
If there are numerous files and folders within the disc, reading time could take more than 10 seconds and the list may not be displayed or song searches may not operate. Once loading is complete, try again.
Changing Files
Press the keys to select the previous
or next file.
✽ NOTICE

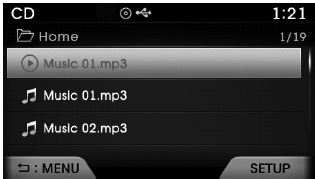

Selecting from the List
Press the ,
keys to search and select for the
desired files.
Once you find the desired file, press the
key to start playing.
Rewinding / Fast-forwarding Files
While playing, press and hold the
keys (over 0.8 seconds) to rewind
or fast-forward the current file.
Scan
Press the key to play the first
10 seconds of each file.

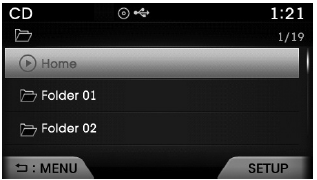

Searching Folders
Select the folder by using the
, keys and press the
key to select.
The first file within the selected folder will begin playing.
