Operating condition
- This system will activate when backing up with the ignition switch ON.
- The sensing distance while the rear parking assist system is in operation
is approximately 47 in. (120 cm).
- When more than two objects are sensed at the same time, the closest one
will be recognized first.
✽ NOTICE
The parking assist system may not operate if the vehicle’s distance from the
object is already less than approximately 9.84 in (25 cm) when the system is ON.

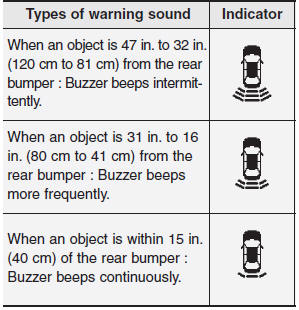

Types of warning sound and indicator
✽ NOTICE
- The indicator may differ from the illustration according to the objects
or sensors status.
- If the indicator blinks, have the system checked by an authorized HYUNDAI
dealer.
- The actual indicator in the vehicle may be different from the illustration.
To turn off the rear parking assist system, push the button (the indicator light
will illuminate). ...
The rear parking assist system may not operate properly when:
1. Moisture is frozen to the sensor. (It will operate normally when the moisture
has been cleared.)
2. The sensor is covered with forei ...
