Pressing the key will change the
operating mode in order of CD➟USB(iPod®)➟AUX➟My Music ➟ BT Audio.

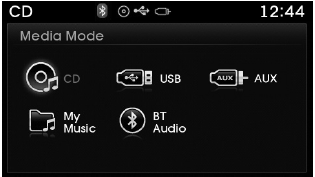

If [Mode Pop up] is turned on within
[Display], then pressing the
key will display the Media mode Pop-up
screen.
Use ,
keys and ,
keys to move the focus. Press the
key to select.
✽ NOTICE
