Hyundai Azera: Intake Air Temperature Sensor (IATS) Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Control/Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS) Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Control/Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS) Schematic Diagrams

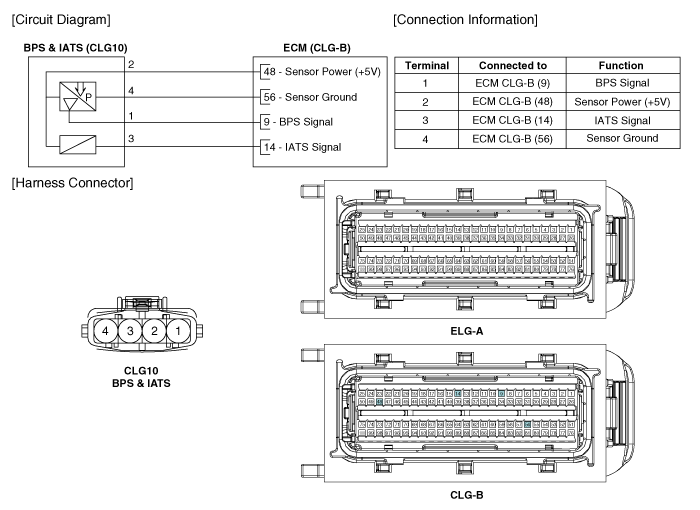

| Circuit Diagram |
Intake Air Temperature Sensor (IATS) Specifications
Specification
TemperatureResistance (k?)°C°F-40-4040.93 ~ 48.35-20-413.89 ~ 16.030325.38 ~ 6.0910503.48 ~ 3.9020682.31 ~ 2.57401041.08 ~ 1.21601400.54 ~ 0.66801760.29 ~ 0.34
...
Intake Air Temperature Sensor (IATS) Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the IATS connector.
3.
Measure resistance between the IATS terminals 3 and 4.
4.
Check that the resistance is within the speci ...
See also:
Movable Glass Repair procedures
Replacement
1.
Open the movable glass fully.
2.
Remove the folding cover (A).
3.
After loosening the mounting screws, then remove the movable glass (A).
•
Do not ...
