Hyundai Azera: Input Speed Sensor Schematic Diagrams
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Input Speed Sensor Schematic Diagrams
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Input Speed Sensor Schematic Diagrams

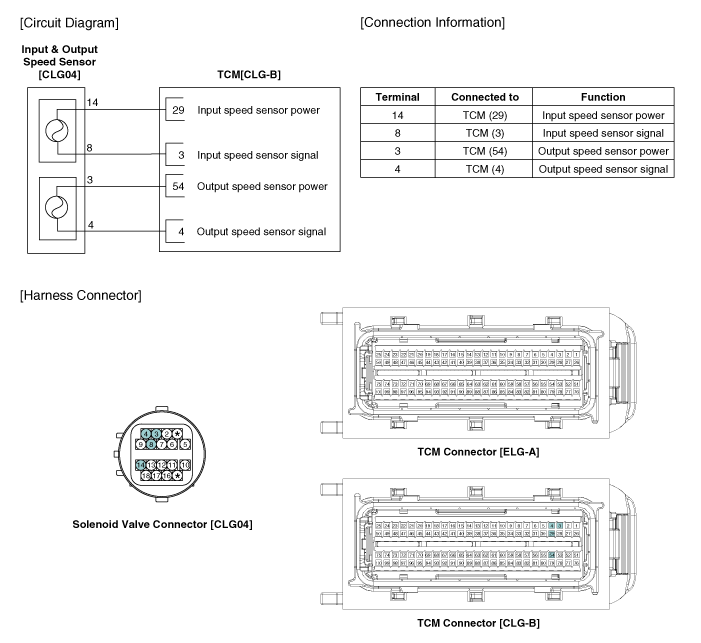

| Circuit Diagram |
Input Speed Sensor Specifications
Specifications
? Type: Hall effect sensor
Operation condition [°C(°F)](-40~150) -40~302Air gap(mm)in.(0.95~1.65)0.037~0.065Output voltage(V)High1.18~1.68Low0.59~0.84
...
Input Speed Sensor Troubleshooting
Signal Waveform
Fig 1) Input/Output speed sensor at low speed
Fig 2) Input/Output speed sensor at high speed ...
