Hyundai Azera: IMS Power Seat Control Repair procedures
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS Power Seat Control Repair procedures
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS Power Seat Control Repair procedures
| Inspection |
| 1. |
It will be able to diagnose defects of IMS with GDS quickly.
GDS can operates actuator forcefully, input/output value monitoring and
self diagnosis. |
| 2. |

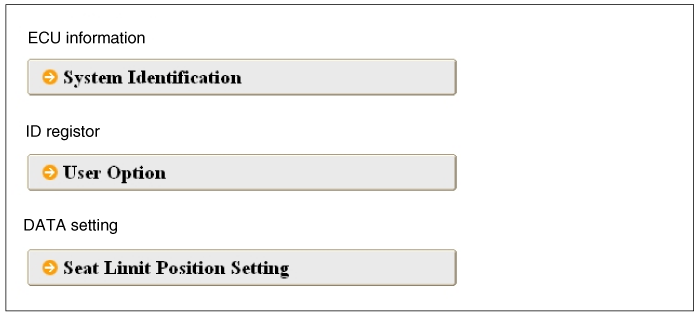

Select model and "IPM - Power seat module". |
| 3. |

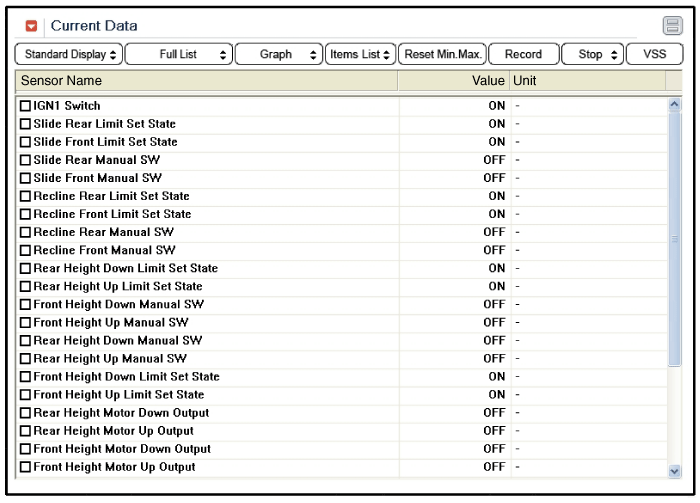

Select "Input/output monitoring", if you will check current
data of body network system. It provides input/output status of each
module.
|
| 4. |

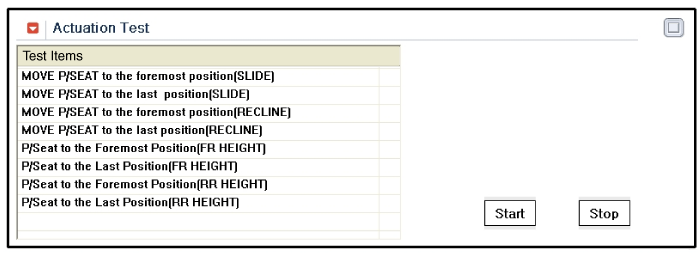

If you will check each module data operation forcefully, select "Actuation test".
|
| 5. |

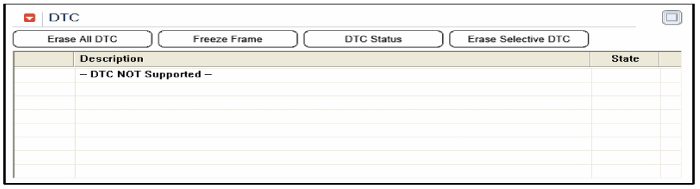

To check the DTC of the each module, select "DIAGNOSTIC TROUBLE CODES"
|
| 6. |
You can turn ON/OFF of Power seat module option with the "User option"
|
| 7. |

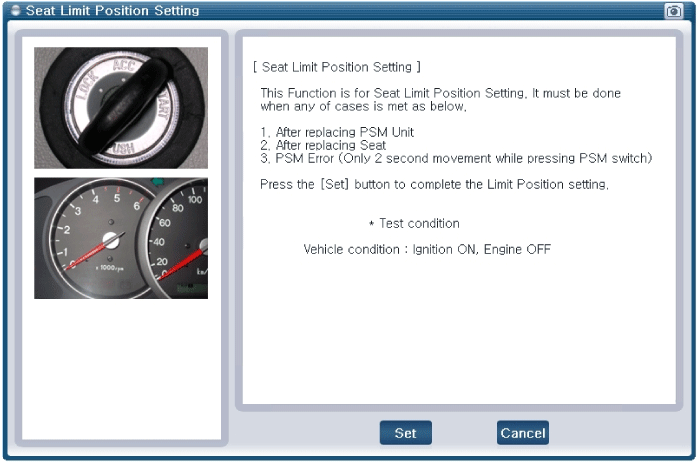

Select the "Data setting" to set the seat position setting when replacing the IMS unit or seat module.
|
| 8. |
Click the "Set".
|
| 9. |
Click the "OK" to complete the set up procedure.
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the door trim (A) after loosening mounting screws.
|
| 3. |
Remove the memory power seat control switch (A) after loosening connector and screws (3EA) from the door trim.
|
| Installation |
|
| 1. |
Install the memory power seat control switch after connecting the switch connector. |
| 2. |
Install the driver door trim. |
| 3. |
Install the negative (-) battery terminal. |
