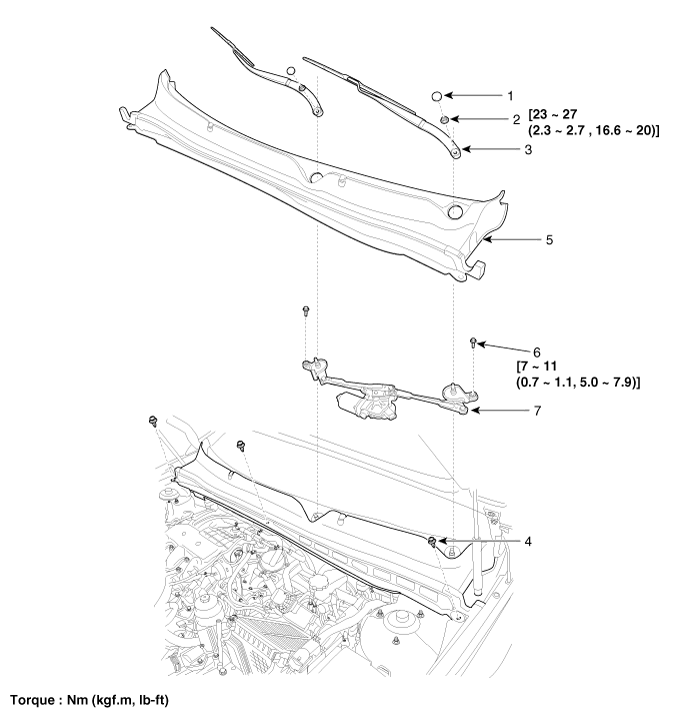

| Component Location |
| 1. Cap 2. Nut 3. Wiper arm & blade 4. Rivet | 5. Cowl top cover 6. Bolt 7. Wiper motor & linkage assembly |
Windshield Wiper-Washer Switch Repair procedures
Inspection
1.
The windshield wiper / washer switch inputs can be checked using the GDS.
2.
To check the input value of windshield wiper/washer switch, select option "MFSW".
3.
To consult t ...
Front Wiper Motor Repair procedures
Removal
1.
Loosen the windshield wiper arm nut (B) after removing a wiper cap (A).
2.
Remove the windshield wiper arm and blade.
3.
If necessary, release the wiper blade fixing clip by pul ...
