Hyundai Azera: Front Seat Shield Outer Cover Repair procedures

Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Outer Cover Repair procedures

Replacement

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

•	Put on gloves to protect your hands.

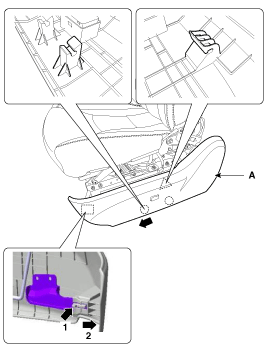

1.	Using a screwdriver or remover, remove the front seat shield outer cover (A).

2.	Disconnect the connector (A).

3.

Installation is the reverse of removal.

•	Replace any damaged clips.

•	Make sure the connector is plugged in properly.

Front Seat Shield Outer Cover Components and Components Location

Component Location 1. Front seat shield outer cover ...

Front Seat Shield Inner Cover Components and Components Location

Component Location 1. Front seat shield inner cover ...
