Hyundai Azera: Front Disc Brake Components and Components Location - Brake System - Brake System - Hyundai Azera 2011-2024 Service ManualHyundai Azera: Front Disc Brake Components and Components Location

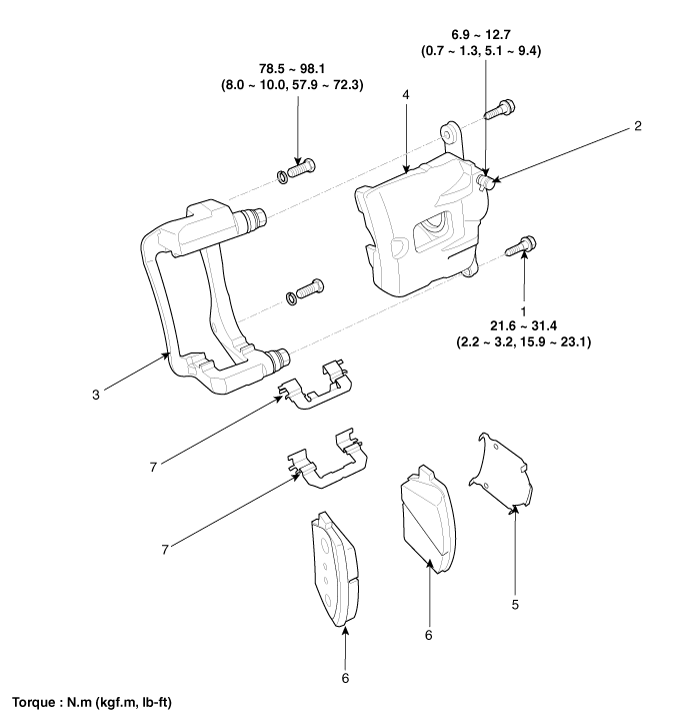

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer

Brake Pedal Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Refer to Body - "Crash pad lower panel") 3. Remove the shower duct ...

Front Disc Brake Repair procedures
Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) 2. Loosen the hose eyebolt (C) and caliper mounting bolts (B), then ...
