Hyundai Azera: Filter replacement
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Owners Manual / Maintenance / Climate control air filter / Filter replacement
1. Open the glove box and remove the support strap (1).

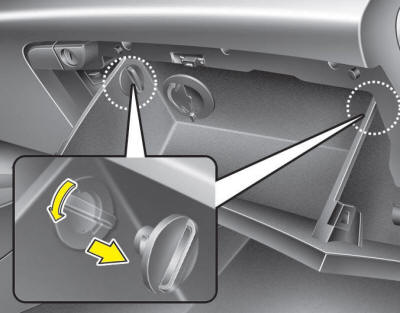

2. With the glove box open, remove the stoppers by turning them counterclockwise on both sides.

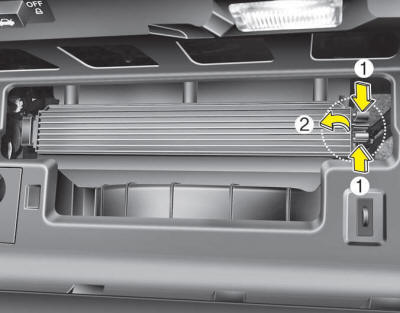

3. Remove the climate control air filter cover while pressing the lock on the right side of the cover.
4. Replace the climate control air filter.
5. Reassemble in the reverse order of disassembly.
✽ NOTICE

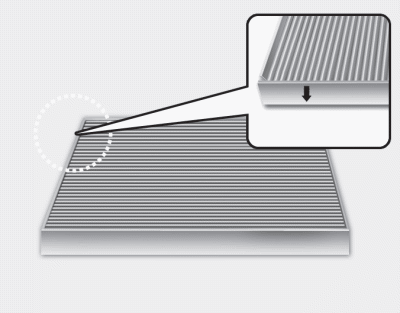

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
Filter inspection
If the vehicle is operated in the severely air-polluted cities or on dusty rough
roads for a long period, it should be inspected more frequently and replaced earlier.
When you, the owner, replace th ...
