Press the key
Select [Phone]

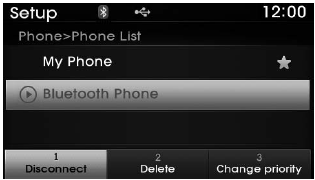

Select [Paired Phone List]
From the paired phone list, select the currently connected device and select
the button.
