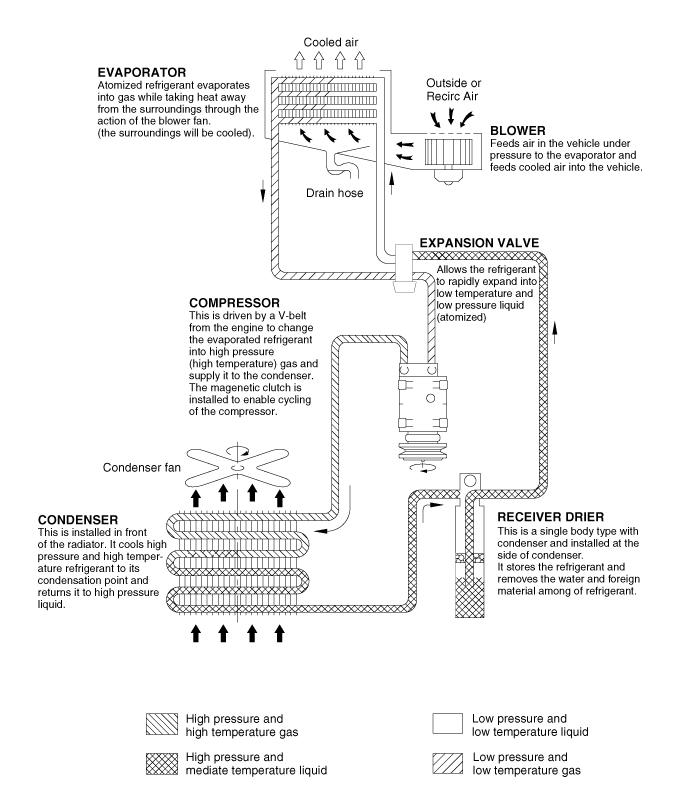

| Refrigeration Cycle |

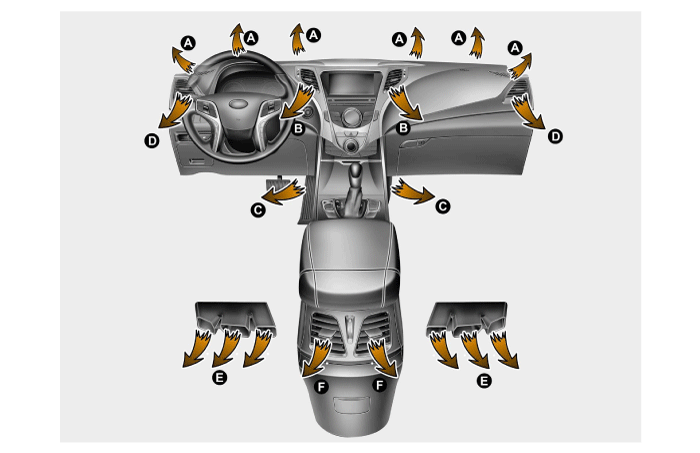

| Air Outlet and Air Flow |
| The mode selection switch controls the direction of the air flow through the ventilation |
System
| Air Flow | Symbol | Outlet | Description |
| Vent |
| B,C,D,E,F | Air flow is directed toward the upper body and face.
Additionally, each outlet can be controlled to direct the air discharged
from the outlet. |
| B/L |
| B,C,D,E,F | Air flow is directed towards the face and the floor. |
| Floor |
| A,C,D,E | Most of the air flow is directed to the floor, with a small amount of air directed to the windshield and side window defrosters. |
| Mix |
| A,C,D,E | Most of the air flow is directed to the floor and the
windshield, with a small amount directed to the side window
defrosters. |
| Defog |
| A,D | Most of the air flow is directed to the windshield, with a small amount of air directed to the side window defrosters. |
General Safety Information and Caution
Instructions
When Handling Refrigerant
1.
R-134a liquid refrigerant is highly volatile. A drop on the
skin of your hand could result in localized frostbite. When handling the
refrigerant, be ...
Repair procedures
Refrigerant System Service Basics
Refrigerant Recovery
Use only service equipment that is U.L-listed and is
certified to meet the requirements of SAE J2210 to remove
HFC-134a(R-134a) from the ...
