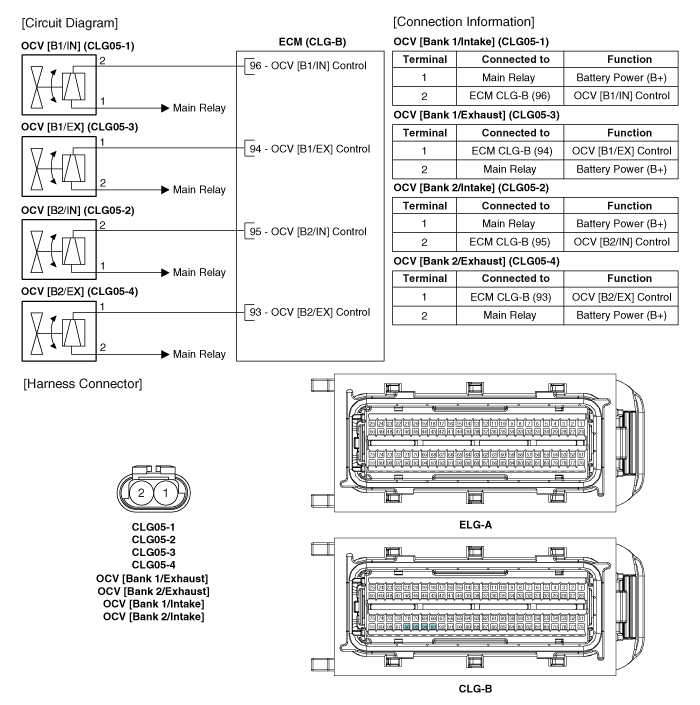

Hyundai Azera: CVVT Oil Control Valve (OCV) Schematic Diagrams

CVVT Oil Control Valve (OCV) Specifications

Specification ItemSpecificationCoil Resistance (?)9.4 ~ 10.4 [20°C(68°F)] ...

CVVT Oil Control Valve (OCV) Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV terminals 1 and 2. 4. Check that the resistance is within the specifi ...

See also:

Torque Converter Control Solenoid Valve (T/CON_VFS) Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Disconnect the solenoid valve connector. 3. Measure resistance between sensor signal terminal and sensor ground terminal. 4. Check that the ...
