Hyundai Azera: Cruise control system

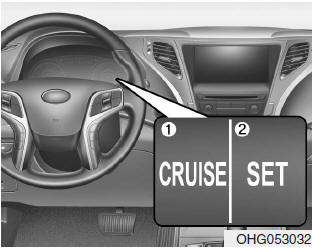

➀ Cruise indicator
➁ SET indicator

The cruise control system allows you to program the vehicle to maintain a constant speed without depressing the accelerator pedal.

This system is designed to function above approximately 25 mph.

• If the cruise control is left on (CRUISE indicator light in the instrument cluster illuminated), the cruise control can be switched on accidentally. Keep the cruise control system off (CRUISE indicator light OFF) when the cruise control is not in use, to avoid inadvertently setting a speed.
• Use the cruise control system only when traveling on open highways in good weather.
• Do not use the cruise control when driving in heavy or varying traffic, or on slippery (rainy, icy or snow - covered) or winding roads or over 6% up-hill or down-hill roads.

✽ NOTICE

• During normal cruise control operation, when the SET switch is activated or reactivated after applying the brakes, the cruise control will energize after approximately 3 seconds. This delay is normal.
• To activate cruise control, depress the brake pedal at least once after turning the ignition switch to the ON position or starting the engine. This is to check if the brake switch which is important part to cancel cruise control is in normal condition.

WARNING - Misuse of cruise control Do not use cruise control if the traffic situation does not allow you to drive safely at a constant speed and with sufficient distance to the vehicle in front.

To set cruise control speed:

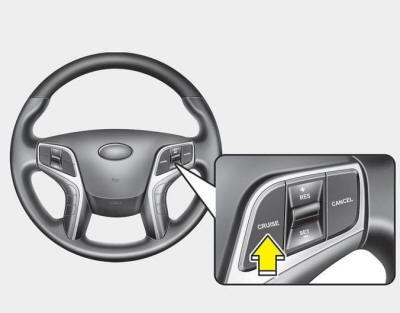

1. Push the CRUISE button on the steering wheel to turn the system on.The CRUISE indicator light in the instrument cluster will illuminate.
2. Accelerate to the desired speed, which must be more than 25 mph.

3. Push the SET- switch, and release it at the desired speed. The SET indicator light in the instrument cluster will illuminate. Release the accelerator pedal. The desired speed will automatically be maintained.

On a steep grade, the vehicle may slow down or speed up slightly while going uphill or downhill.

To increase cruise control set speed:

Follow either of these procedures:

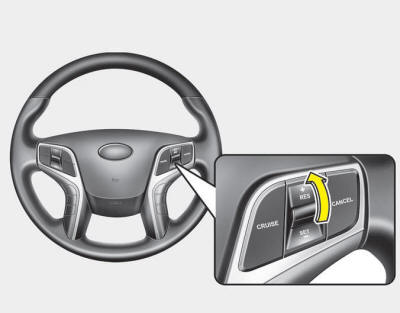

• Push the RES+ switch and hold it. Your vehicle will accelerate. Release the switch at the speed you want.
• Push the RES+ switch and release it immediately. The cruising speed will increase by 1.0 mph each time the RES+ switch is operated in this manner.

To decrease cruise control set speed:

Follow either of these procedures:

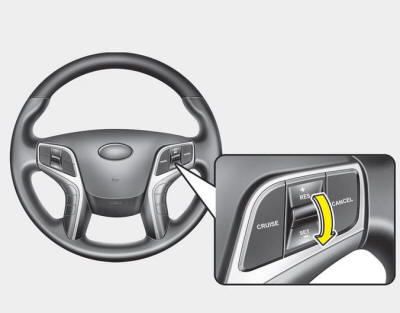

• Push the SET- switch and hold it. Your vehicle will gradually slow down. Release the switch at the speed you want to maintain.
• Push the SET- switch and release it immediately. The cruising speed will decrease by 1.0 mph each time the SET- switch is operated in this manner.

To temporarily accelerate with the cruise control on:

If you want to speed up temporarily when the cruise control is on, depress the accelerator pedal. Increased speed will not interfere with cruise control operation or change the set speed. To return to the set speed, take your foot off the accelerator pedal.

If you press the SET- switch at increased speed, the cruising speed will be set again.

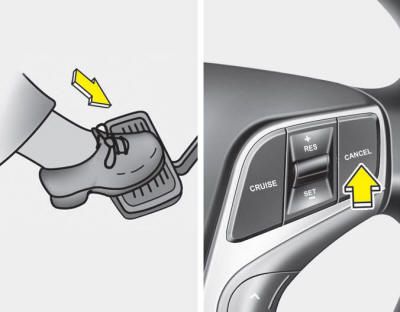

To cancel cruise control, do one of the following:

• Depress the brake pedal.
• Shift into N (Neutral) with an automatic transaxle.
• Press the CANCEL switch located on the steering wheel.
• Decrease the vehicle speed lower than the memory speed by 9 mph.
• Decrease the vehicle speed to less than approximately 25 mph.

Each of these actions will cancel cruise control operation (the SET indicator light in the instrument cluster will go off), but it will not turn the system off. If you wish to resume cruise control operation, push the RES+ switch located on your steering wheel.You will return to your previously preset speed.

To resume cruising speed at more than approximately 25 mph:

If any method other than the CRUISE switch was used to cancel cruising speed and the system is still activated, the most recent set speed will automatically resume when the RES+ switch is pushed.

It will not resume, however, if the vehicle speed has dropped below approximately 25 mph.

To turn cruise control off, do one of the following:

• Push the CRUISE button (the CRUISE indicator light in the instrument cluster will go off).
• Turn the ignition off. Both of these actions cancel cruise control operation. If you want to resume cruise control operation, repeat the steps provided in “To set cruise control speed” on the previous page.
