| Component Location Index |

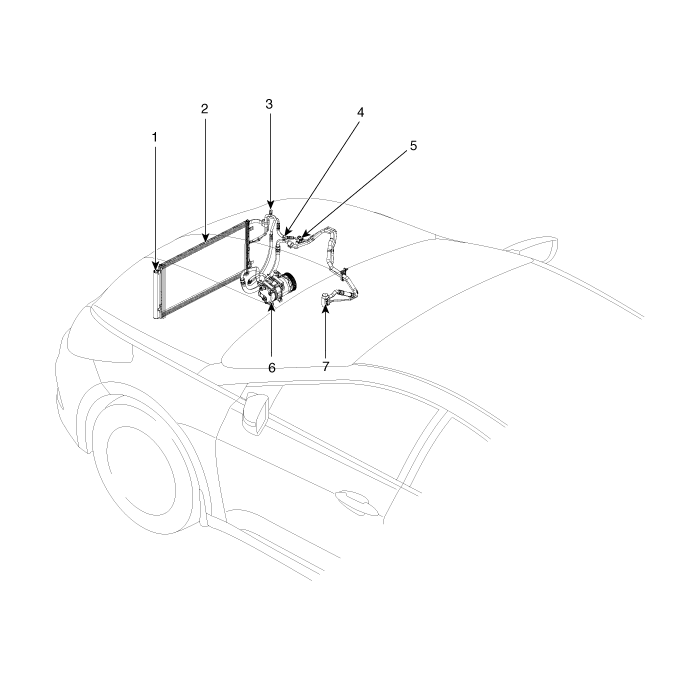

| Engine Room |
| 1. Receiver Drier 2. Condenser 3. Service Port (High Pressure) 4. Service Port (Low Pressure) | 5. APT 6. Compressor 7. Expansion Valve |

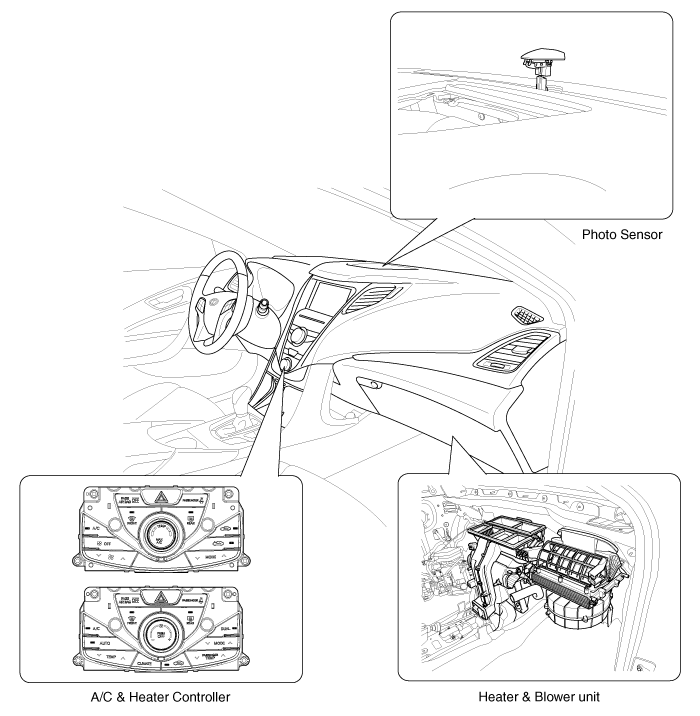

| Interior |
