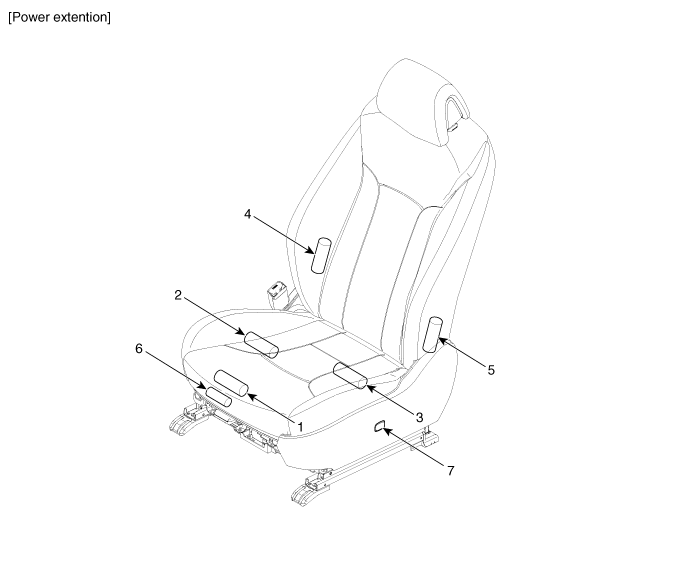

| Component Location |
| 1. Slide motor 2. Front height motor 3. Rear height motor 4. Lumbar support motor | 5. Recline motor 6. Cushion extension motor 7. Lumbar support switch |
Seat Electrical
...
Power Seat Motor Repair procedures
Inspection
Power Seat Motor
1.
Disconnect the connectors for each motor.
A : Front height motor
B : Slide motor
C : Rear height motor
D : Recline motor
E : Lumbar support motor
F : Cushion ...
