| Component Location |

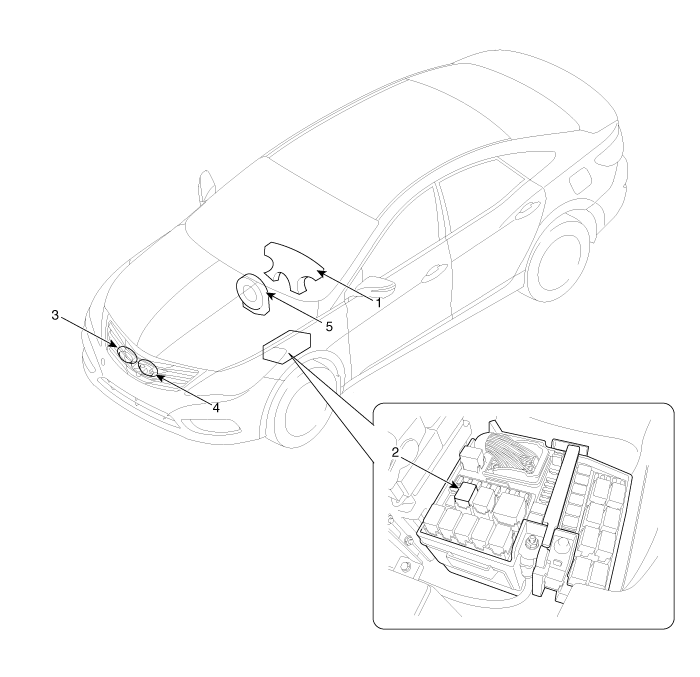

| 1. Horn switch 2. Horn relay (Engine room compartment) 3. Horn - High pitch | 4. Horn - Low pitch 5. Clock spring |
Horn
...
Repair procedures
Inspection
Test the horn by connecting battery voltage to the 1 terminal and ground the 2 terminal.
The horn should make a sound. If the horn fails to make a sound, replace it.
