| Components |

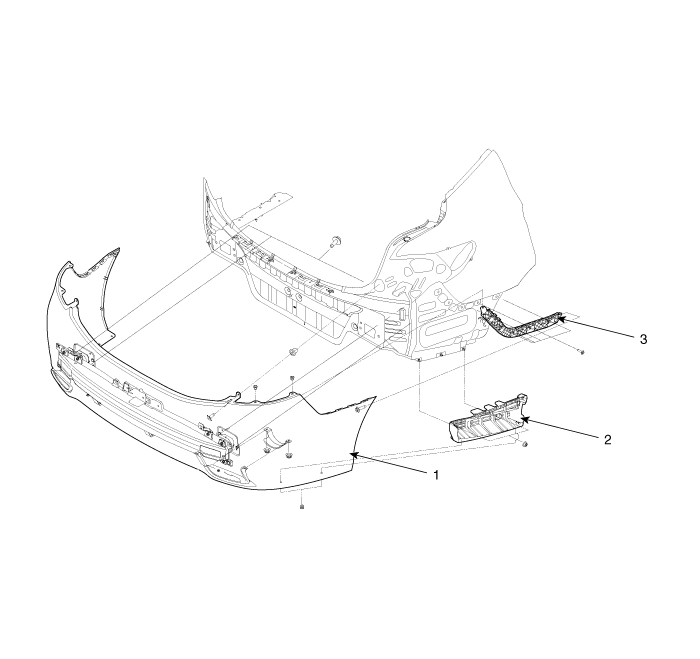

| 1. Rear bumper cover 2. Rear bumper lower side bracket | 3. Rear bumper side bracket |
Rear Bumper
...
Rear Bumper Cover Components and Components Location
Component Location
1. Rear Bumper Cover
...
