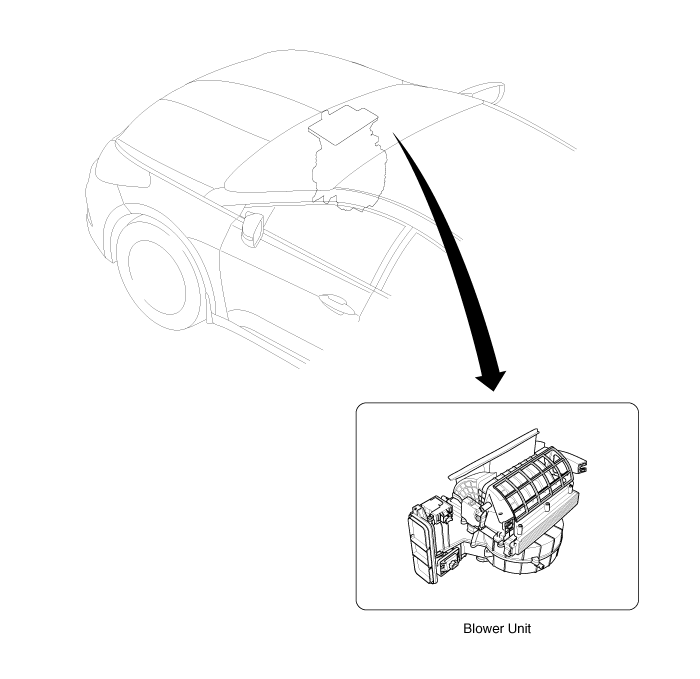

| Component Location |
| Components |

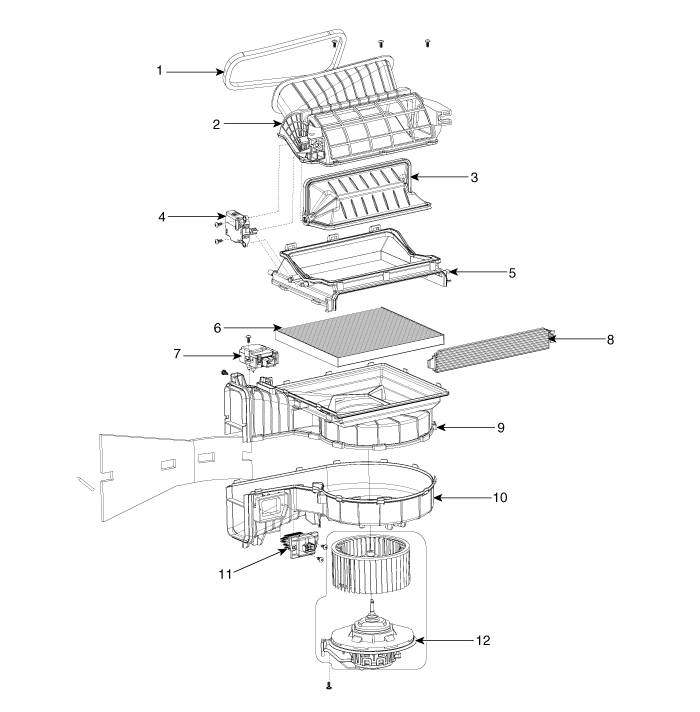

| 1. Duct Seal 2. Duct Case 3. Inlet Door 4. Intake Actuator | 5. Inlet Duct Case (A) 6. Climate control air filter 7. Cluster Ionizer 8. Climate control air filter Cover | 9. Blower Upper Case 10. Blower Lower Case 11. FET 12. Blower Motor |
Blower
...
Blower Unit Repair procedures
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the heater and blower unit.
(Refer to Heater - "Heater Unit")
3.
Remove the blower unit (A) from the heater unit ...
