Hyundai Azera: Blade replacement
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Owners Manual / Maintenance / Wiper blades / Blade replacement
When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.
CAUTION
- To prevent damage to the wiper arms or other components, do not attempt to move the wipers manually.
- The use of a non-specified wiper blade could result in wiper malfunction and failure.
Front windshield wiper blade

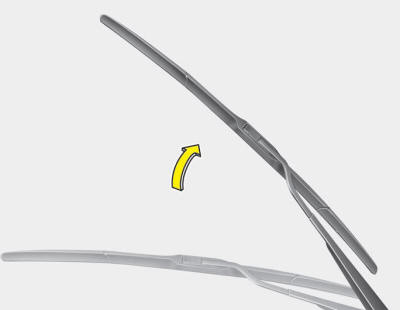

1. Raise the wiper arm.

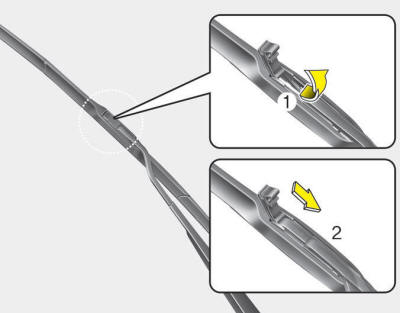

2. Lift up the wiper blade clip. Then pull down the blade assembly and remove it.

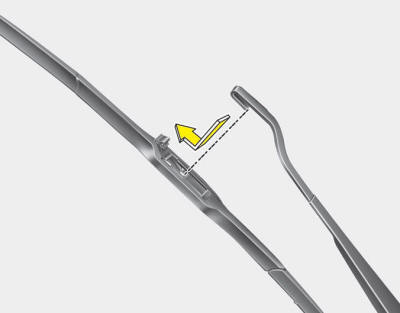

3. Install the new blade assembly in the reverse order of removal.
CAUTION - Wiper arms
Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.
